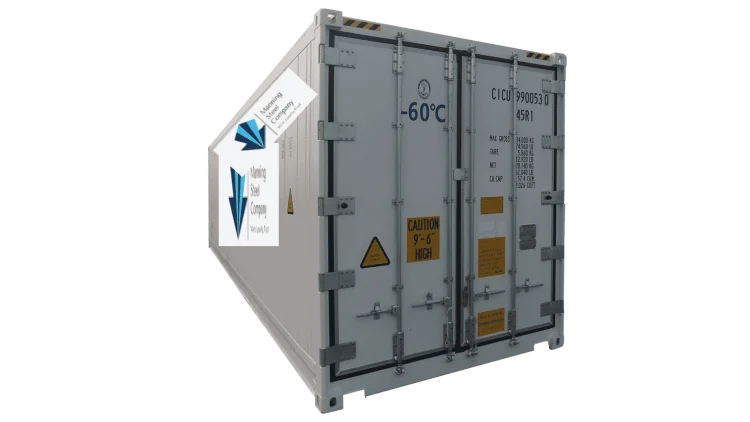

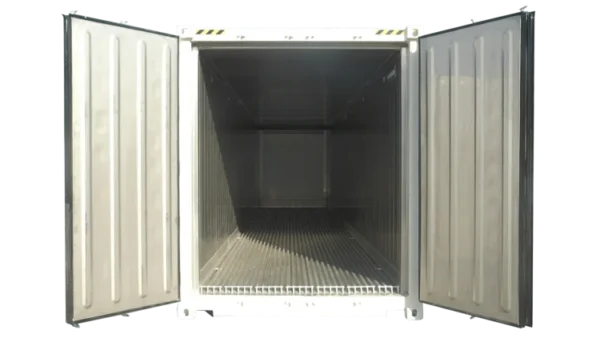

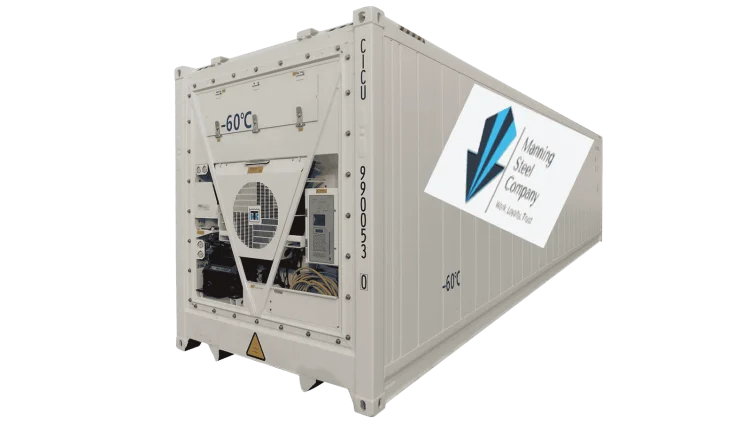

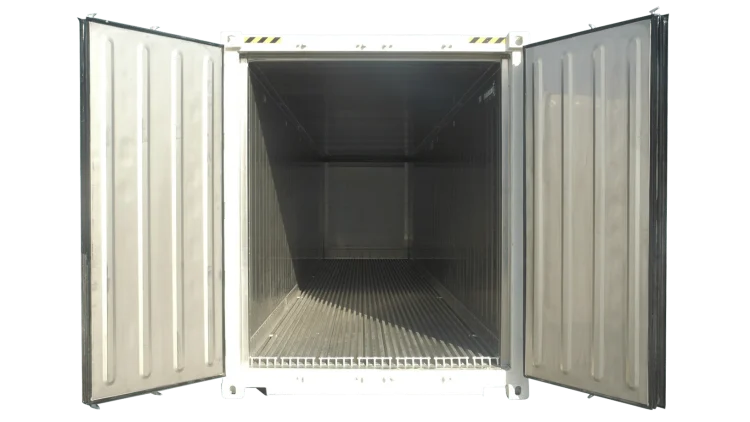

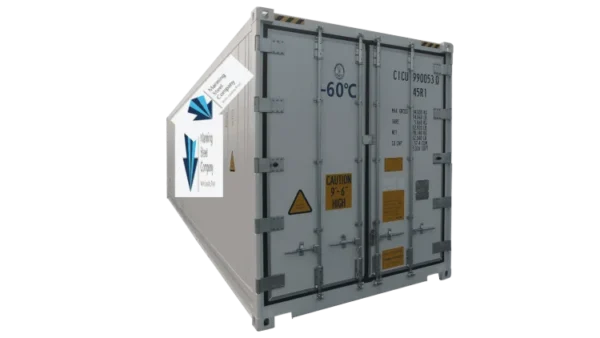

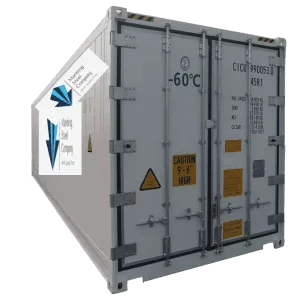

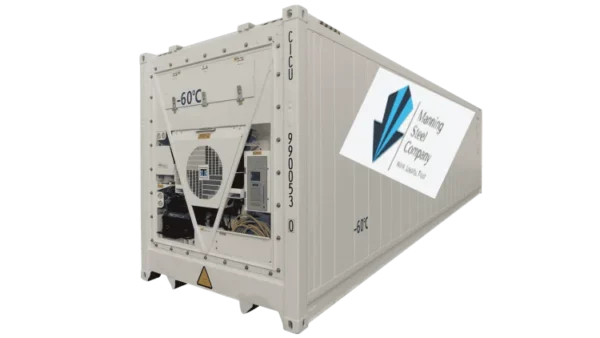

40FT Super Freezer -76°F TO 30°F (460V/230V 3P)

Description

                     40FT Super Freezer -76°F TO 30°F (460V/230V 3P)

Description

Specifications

40ft super freezer container specifications: used refrigerated shipping containers

Preservation

• All steel parts shall be shot-blasted to Swedish Standard Sa 2.5.
• Polyurethane contact surfaces a) Main foaming area Special foam adhesive will only be applied to inner linings contact surfaces for good adhesion with PU (at Ultra-low temperature). Outer panel surface will still use a normal adhesive primer or foam bond. b) Residual foaming area of Corten parts Polyamide epoxy primer will be applied to the insulation foam contact surface.
• All CONTEN steel out surface shall be primed with 30 microns of Zinc rich primer, 40 microns of Epoxy zinc phosphate primer and 50 microns of Acrylic Topcoat.
• All MGSS parts (roof and side panel) shall be primed 40 microns of Epoxy zinc phosphate primer and 60 microns of Acrylic Topcoat.
• The steel door panel shall be painted 40 microns of Epoxy zinc phosphate primer and 50 microns of polyurethane topcoat.
• Undercoating shall be primed with 30 microns zinc-rich primer 40 microns Epoxy zinc phosphate primer and 150microns of Tectyl 121B. Topcoat (Including steel door panel) Colour: white (RAL 9010). Paint supplier: KCC /HEMPEL (except shop primer)
